7.5 HP - Tilting Shaper - Cantek SS-512TB
This tilting shaper, manufactured by Cantek, features a precision ground & electronically balanced -5o to +45o tilting spindle.
Highlighted Features:
- Tilting spindle: -5o to +45o
- Powerful 7.5 HP spindle
- Cast iron sliding table runs on ball bearing for smooth table transition
- Includes (1) 1 1/4" interchangeable spindle (other spindle diameters available upon request)

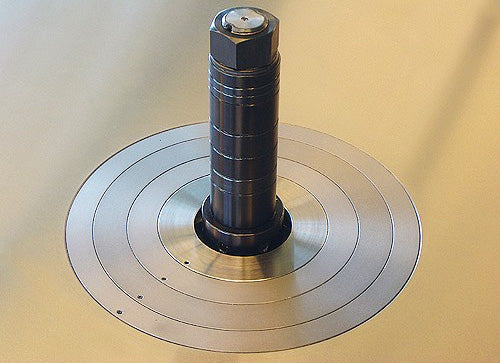

- Cast iron ground & polished table with insert rings
- Precision ground & electronically balanced spindle
- Micro spindle height adjustment with dial indicator
- Forward/reverse spindle rotation
- V-belt drive with 5 feed speeds is easily accessed from the front of the machine
- Electric spindle brake for added safety
- Spindle lock - with limit switch safety, machine will not start with lock engaged
- Adjustable "finger" type fence for adjust
- Independent micro-fence adjustment on both sides
- Table is pre-drilled to mount a power feeder
Technical Specifications:
| Motor power | 7.5 HP |
| Table size | 39.4" x 31.5" |
| Table height | 35.4" |
| Spindle stroke | 7" |
| Max tool diameter | Below table - 8.27" and above table - 13.19" |
| Spindle speeds (five) | 3000/4000/6000/8000/10000 RPM |
| Machine dimensions | 48.5" x 39.4" x 52.75" |
| Machine weight | 1034 lbs. |
| Tilting spindle | -5 degrees ~ 45 degrees |
